Gas cylinder storage
Storing gases in accordance with PGS 15. When it comes to safety, it is of great importance that your gas cylinders are stored in a storage facility intended for gas cylinders. Not only for the safety of your surroundings or against fire hazards, but also for the fact that the cylinders cannot fall over.
The PGS 15 standard contains all the information for the implementation of the safe storage of gas cylinders and the implementation of gas cylinder storage. Kuil Nicos is happy to support you in making the right choice.
GFC-B
GAS CYLINDERS CONTAINER F90 ACCORDING TO DIN 4102
Outdoor gas cylinder storage, completely assembled, walls and roof F90 to DIN 4102:
- Sturdy frame construction according to TRGS 510 with roof and bottom
- Lockable wing door made of wire mesh
- Mesh floor
- Prepared for floor fastening
- Completely assembled
Options:
- Bottle holder for the safe storage of upright gas cylinders Ø 220 mm with chain protection;
- Gas cylinder rack type GFG for space-saving storage of gas cylinders up to 11 kg, galvanized, 2-way stackable, delivered as a kit;
- Fire-resistant partition wall F90

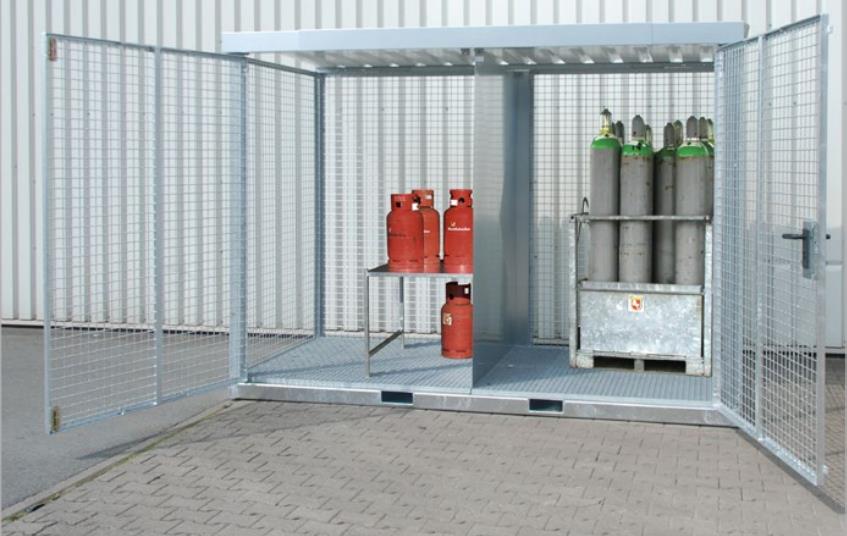

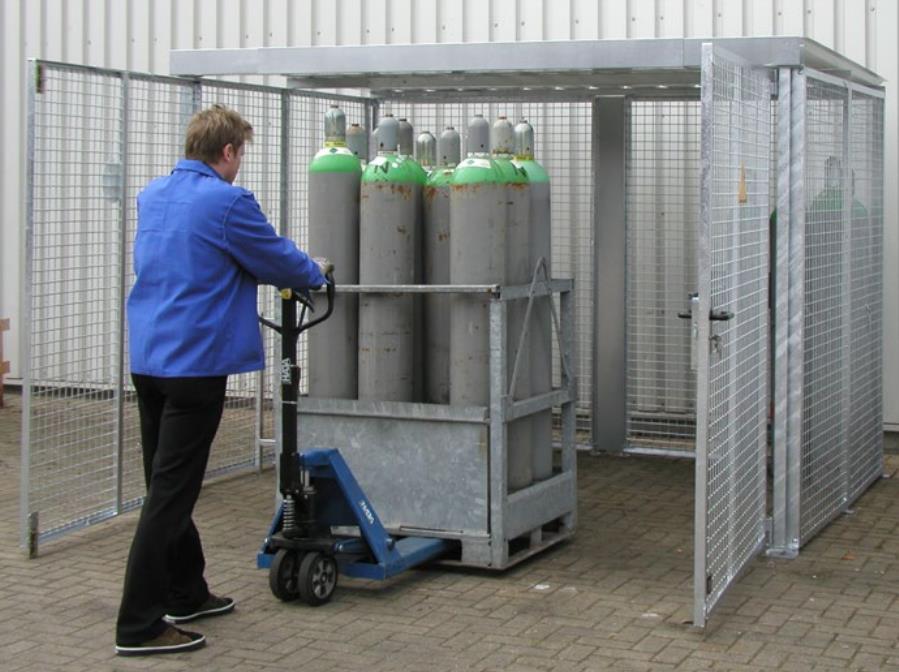

GFC-M
GAS CYLINDER STORAGE WITH OR WITHOUT ROOF. VARIOUS SIZES
Outdoor storage of gas cylinders.As a construction kit with assembly instructions, for easy assembly in-house. Various sizes possible:
- Stable frame construction according to nach TRGS 510;
- Lockable wing door;
- Prepared for floor mounting.
Versions:
GFC-M
- Without roof.
GFC-M-DF
- Without roof;
- Double wing door lockable, particularly suitable for handling with gas cylinders-pallets.
GFC-M/D
- With roof.
GFC-M/D-DF
- With roof;
- Double wing door lockable, particularly suitable for handling with gas cylinder pallets.
Options:
- Bottle holder for gas cylinders Ø 220 mm in upright position, with chain guardl;
- Galvanized grid floor, suitable in case of uneven surfaces;
- Gas cylinder rack GFG for space-saving storage of gas cylinders up to 11 kg, galvanized, 2-way stackable.

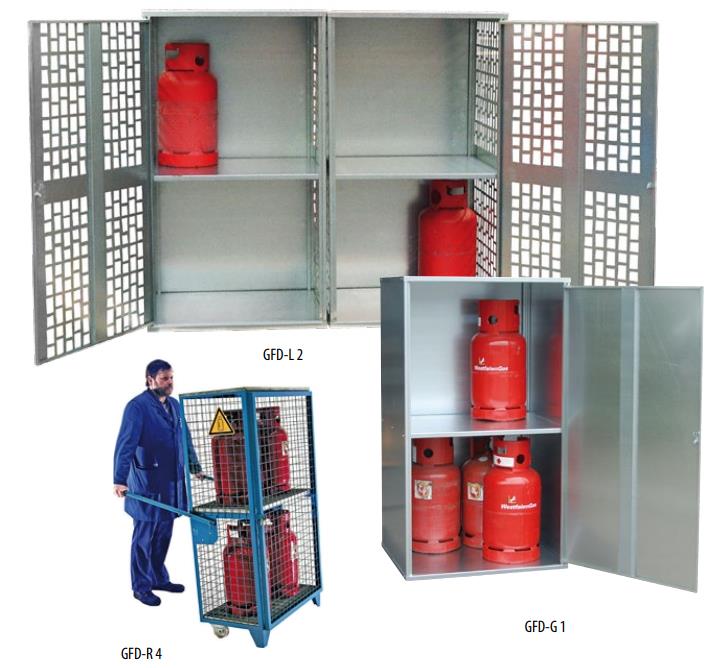

GFD
GAS CYLINDER DEPOT FOR INDOOR AND OUTDOOR ACCORDING TO TRGS 510
Indoor and outdoor gas cylinder storage according to TRGS 510:
- With back wall, bottom and intermediate floor
- Supplied as a kit - easy assembly
Versions:
GFD-G
- Galvanized sheet steel
- Closed construction
- With cylinder lock
GFD-L
- Galvanized sheet steel
- With natural ventilation through open doors and sidewalls
- With cylinder lock
GFD-R
- Mobile, particularly suitable for changing locations
- With 2 swivel pipe handles and 2 castors
- Door and walls of wire mesh
- Door lockable with padlock (padlock not included)
GFC-E
GAS STORAGE CONTAINER, PORTABLE, VARIOUS SIZES
Storage of outdoor gas cylinders, completely assembled, movable with forklift truck ? stable frame construction according to TRGS 510 with roof and bottom:
- Lockable wing door;
- Entrance sleeves for absorption by forklift.
Versions:
GFC-E/T
- With checker plate floor (load capacity 1000 kg/m²).
GFC-E/G
- With grid floor (load capacity 1000 kg/m²).
Options:
- Bottle holder for the safe storage of upright gas cylinders Ø 220 mm, with chain protection;
- Gas cylinder rack type GFG for space-saving storage of gas cylinders up to 11 kg, galvanized, 2-way stackable, delivered as a kit;
- Loading ramp;
- Partition wall.
Not able to find the product you are looking for?
Not all products from our range are shown in our webshop. If you cannot find your desired product or you have questions about our products. Please contact us at info@kuilnicos.nl or call 053-435 88 96.
Looking for a product that is not in our standard range? Thanks to a worldwide network and more than 75 years of experience, we can always offer you a suitable solution.
