Parker Legris Bulkhead transit coupling 01170017

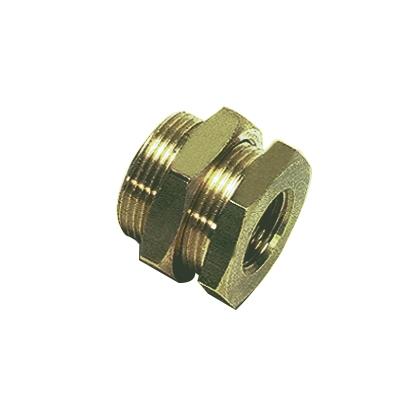

BULKHEAD FITTING BSP - C : G3/8 | 0117 00 17
Brand:
Parker Legris
Manufacturer's number:
0117 00 17
Product information "SHOT DRAW BSP - C : G3/8 | 0117 00 17"
These "universal" joints offer users a variety of connection options for a wide range of pipe materials, without the need for threading or soldering. This range ensures excellent sealing and long-term performance
Features/Benefits:
Easy to install and use.
- Suitable for medium-pressure pneumatic and hydraulic applications
- Compatible with many industrial fluids
- Extensive range: 22 configurations
- Excellent sealing thanks to the sealing of the compression ring on the pipe
- Metal seal ensures maximum service life
- Strong brass for improved mechanical reliability
Large variety of pipes
- Connection of different types of pipes and hoses: metal, polymer, steel, rubber, etc.
- Different pipe diameters can be connected with Parker Legris' reducer assembly system.
- No insert is needed for rigid and semi-rigid polyamide pipes smaller than 14 mm
Markets:
- Packaging
- Various manufacturing markets
- Vehicle assembly facilities
- Machine tools
Applications:
- Pneumatic machine equipment at medium or high pressure
- Lubricating oil systems
- Cooling systems
- Welding robots
- Suitable for vacuum applications
Features
| Material: | Brass |
|---|---|
| Thread size: | 3/8" BSP |
| EAN code: | 0820099105505 |
| Weight (kg): | 0.0960 |
| Commodity code (HS code): | 7412200000 |
| Country of origin: | Spain |
| Maximum working pressure (bar): | 250 |
| Unit of sale: | Pieces |
| Package quantity: | 10 |
| Operating temperature (°C): | -60 to +250 |
