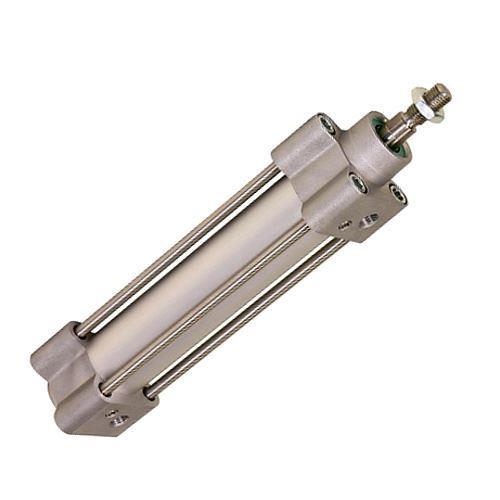

Parker Profielcilinder P1F-T160MSX0125
DOUBLE-ACTING ISO 15552 CYLINDER P1F-T160MSX0125-0000
In stock
Brand:
Parker
Manufacturer's number:
P1F-T160MSX0125-0000
Product Information "DOUBLEWORK ISO 15552 CILINDER P1F-T160MSX0125-0000"
The P1F-T actuator, equipped with large bores in sizes Ø 160, Ø 200, Ø 250 and Ø 320 mm, is an ISO 15552-compliant magnetic tie rod cylinder for standard temperatures from -20 °C to +80 °C. This series is also available in a non-magnetic version and a version for high temperatures up to +150 °C. P1F-T is made of corrosion-resistant materials and is suitable for heavy-duty applications.
Markets:
- Factory automation
- Machine tools
- Packaging machines
- Vehicle assembly facilities
- Material handling machines
- Railroads
Features/Benefits:
- Complies with the ISO 15552 standard
- Bores from 160 to 320 mm
- Tie rod design for heavy-duty applications
- Cast painted end covers for corrosion resistance
- Anodized aluminum bore with stainless steel piston rod and tie rods for use in corrosive environments
- Polyurethane sealing technology
- Adjustable air damping for controlled control of speeds and loads
- Mechanical end stops help reduce noise levels
- Wide range of mounts and plug-in sensors
Features
| Diameter: | 160 mm |
|---|---|
| Thread size: | 1/2" BSPP |
| Weight (kg): | 14.1700 |
| Commodity code (HS code): | 84123100 |
| Country of origin: | Germany |
| Stroke length: | 125 mm |
| Unit of sale: | Pieces |
| Package quantity: | 1 |
| Operating temperature (°C): | -20 to +80 |
